· 3 min read
Mattias Sander

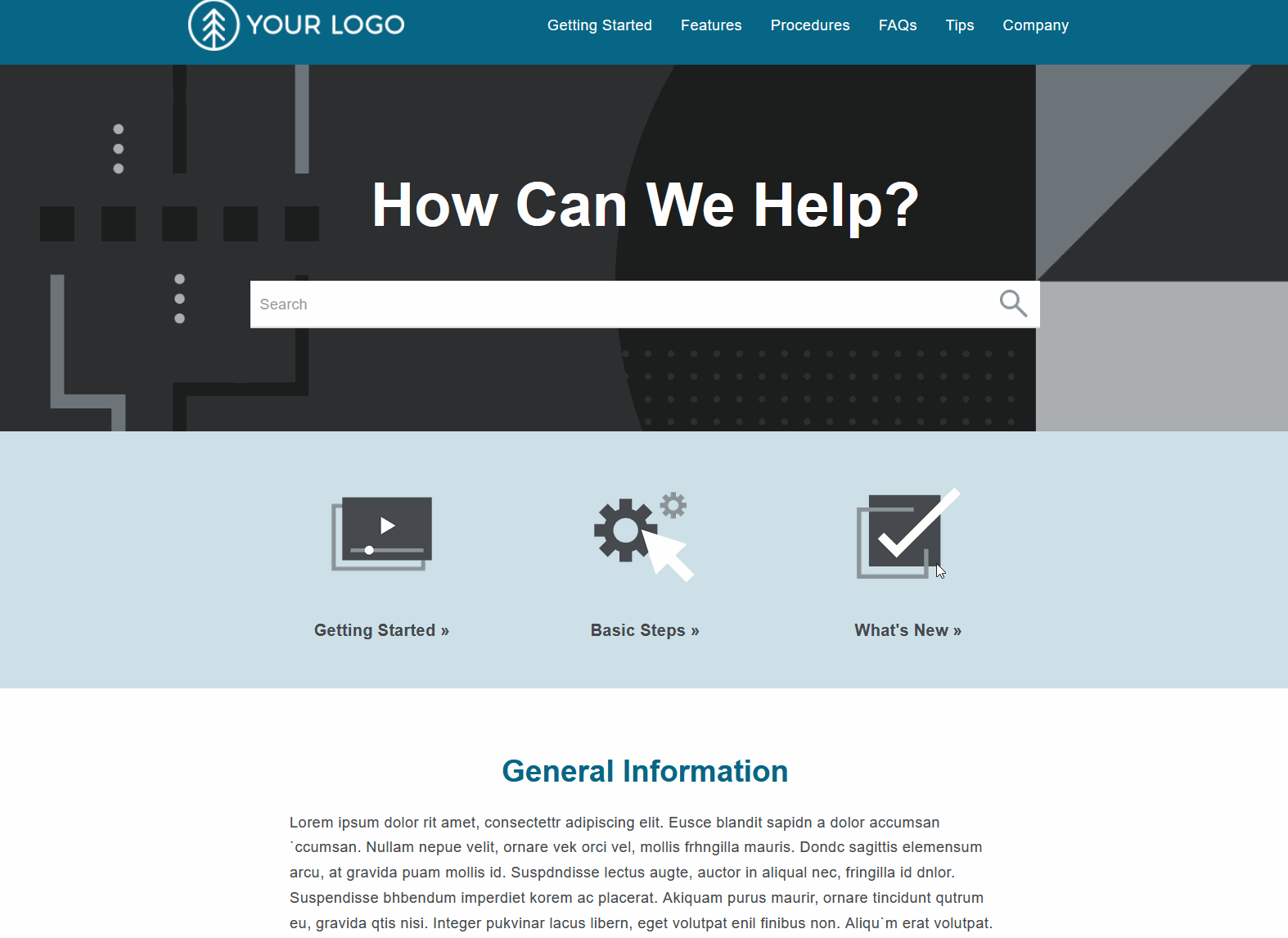

Here's a Javascript you can use to implement a dynamic search dropdown in Flare. Just save the script below in a file and include it in your Flare project, and then include the script in your template page, or any page where you want the dropdown to appear. You might need to adjust the CSS selector of the search input field based on your project's structure.

NOTE Updated 2024-10-14: Added word highlighting. Updated 2024-08-12: Fixed the bug related to boolean operators. Updated 2024-05-20: Added a method to show the dropdown when the search input is focused.

Flare Search Dropdown

class SearchManager {
constructor() {
this.debounce = this.debounce.bind(this);
this.handleSearch = this.handleSearch.bind(this);
this.displayResults = this.displayResults.bind(this);
this.clearResults = this.clearResults.bind(this);
this.showFullResults = this.showFullResults.bind(this);
this.hideDropDown = this.hideDropDown.bind(this);
this.showDropDown = this.showDropDown.bind(this); // Add this line
this.init();
}

debounce(func, delay) {
let debounceTimer;
return function () {
const context = this;
const args = arguments;
clearTimeout(debounceTimer);
debounceTimer = setTimeout(() => func.apply(context, args), delay);
};
}

handleSearch() {
let searchQuery = document.querySelector('.main-section .search-bar > input').value.trim();
const invalidPattern = /(\"|\($|\b(AND|OR|NOT|NEAR)\b)$/i;
const openParenthesesCount = (searchQuery.match(/\(/g) || []).length;
const closeParenthesesCount = (searchQuery.match(/\)/g) || []).length;

if (invalidPattern.test(searchQuery) || openParenthesesCount !== closeParenthesesCount) {
console.warn("Invalid search query. Please ensure proper use of operators and matching parentheses.");
return;
}

if (searchQuery.length > 0) {
MadCap.SearchHelper.SearchPane.Search(searchQuery, { searchContent: true })
.then(this.displayResults)
.catch(error => {
console.error("Search failed: ", error);
});
} else {
this.clearResults();
}
}

displayResults(results) {
const dropdown = document.getElementById('searchResultsDropdown');
dropdown.style.visibility = "visible"; // Ensure the dropdown is visible
dropdown.innerHTML = '';
const searchQuery = document.querySelector('.main-section .search-bar > input').value.trim(); // Get the current search query

results.content.slice(0, 5).forEach(item => {
const resultItem = document.createElement('li');
const title = document.createElement('div');
title.classList.add('title');
title.textContent = item.Title;
resultItem.appendChild(title);
const preview = document.createElement('div');
preview.classList.add('preview');
preview.textContent = item.AbstractText;
resultItem.appendChild(preview);
resultItem.addEventListener('click', () => {
// Append ?Highlight={searchword} to the URL
const urlWithHighlight = `${item.Link}?Highlight=${encodeURIComponent(searchQuery)}`;
window.location.href = urlWithHighlight;
});
dropdown.appendChild(resultItem);
});

if (results.content.length > 5) {
const showAll = document.createElement('li');
showAll.textContent = 'Showing 5 results. For all results, press ENTER';
showAll.addEventListener('click', this.showFullResults);
// Append this first so it's at the top:
dropdown.insertBefore(showAll, dropdown.firstChild);
}
}

displayAllResults(results) {
const dropdown = document.getElementById('searchResultsDropdown');
dropdown.innerHTML = '';
const searchQuery = document.querySelector('.main-section .search-bar > input').value.trim(); // Get the current search query

results.content.forEach(item => {
const resultItem = document.createElement('li');
const title = document.createElement('div');
title.classList.add('title');
title.textContent = item.Title;
resultItem.appendChild(title);
const preview = document.createElement('div');
preview.classList.add('preview');
preview.textContent = item.AbstractText;
resultItem.appendChild(preview);
resultItem.addEventListener('click', () => {
// Append ?Highlight={searchword} to the URL
const urlWithHighlight = `${item.Link}?Highlight=${encodeURIComponent(searchQuery)}`;
window.location.href = urlWithHighlight;
});
dropdown.appendChild(resultItem);
});
}


clearResults() {
const dropdown = document.getElementById('searchResultsDropdown');
dropdown.innerHTML = '';
}

showFullResults() {
// Implementation for showing full results
}


hideDropDown(event) {
const searchResultsDropdown = document.getElementById('searchResultsDropdown');
if (!event.target.closest(".search-field")) {
searchResultsDropdown.style.visibility = "hidden";
}
}

showDropDown() { // Add this method
const searchResultsDropdown = document.getElementById('searchResultsDropdown');
searchResultsDropdown.style.visibility = "visible";
}

init() {
$(document).ready(() => {
const searchInput = document.querySelector('.main-section .search-bar > input');
searchInput.addEventListener('input', this.debounce(this.handleSearch, 300));
searchInput.addEventListener('focus', this.showDropDown); // Add this line
const dropdown = document.createElement('ul');
dropdown.id = 'searchResultsDropdown';
document.querySelector('.main-section .search-bar').appendChild(dropdown);
});

document.addEventListener("click", this.hideDropDown);
}
}

new SearchManager();

· One min read
Mattias Sander

Post build events in MadCap Flare can append styles to the skin-specific CSS, enabling customization of elements not available in the Flare skin editor. This is particularly useful for Tripane skin where some elements, like the search bar proxy, lack direct support for modifications.

  1. Create Custom CSS and JavaScript: Prepare your additional CSS and JavaScript files with the desired styles and functionalities.

  2. Configure Post Build Events: In your Flare project, open your target, and looks under the 'Build Events' tab, add the following batch commands as post build events:

    type "$(ProjectDirectory)Content\Skin_CSS_additions.css" >> "$(OutputDirectory)\Skins\Default\Stylesheets\Styles.css"
    type "$(ProjectDirectory)Content\Skin_Javascript_additions.js" >> "$(OutputDirectory)\Resources\Scripts\MadCapAll.js"

    These commands append your custom CSS and JavaScript to Styles.css and MadCapAll.js in the output directory.

  3. Build the Project: Execute a build. The custom styles and scripts will be integrated into the skin files.

Post build events offer a practical solution to extend the customization capabilities of Flare’s Tripane skin, allowing for additional styling and functionality adjustments not provided by the default skin editor.

· One min read
Mattias Sander

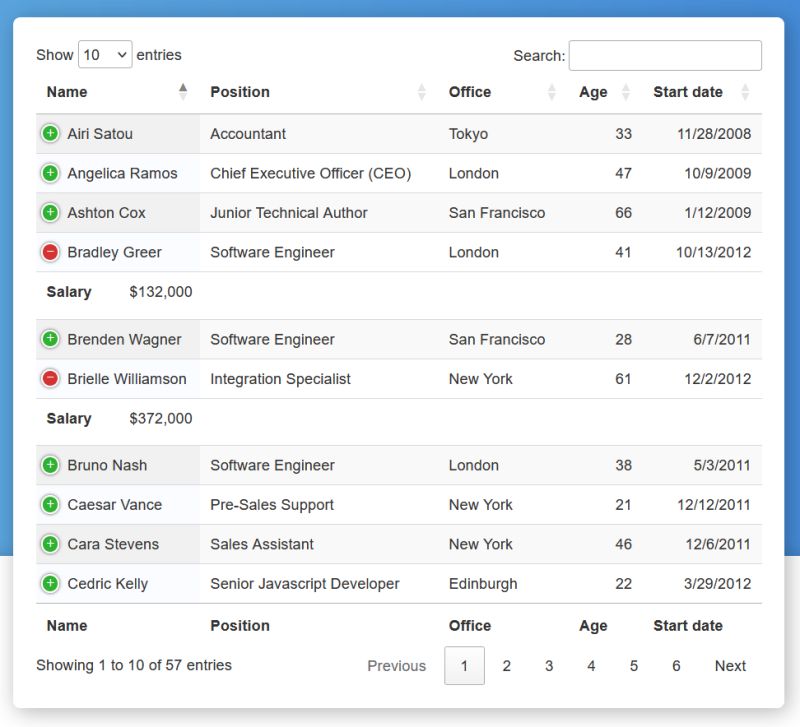

Supercharge your tables in MadCap Flare using the DataTables JavaScript plug-in. As a bonus it makes your tables mobile friendly automatically.

Just add these tags to your template page <head> element:

<link rel="stylesheet" type="text/css" href="//cdn.datatables.net/2.0.1/css/dataTables.dataTables.min.css">

<script type="text/javascript" src="//cdn.datatables.net/2.0.1/js/dataTables.min.js"></script>

<script type="text/javascript">
$(document).ready(function() {
let table = new DataTable('.myTable');
});
</script>

For more information, see https://datatables.net/.

· One min read
Mattias Sander

When working with MadCap Flare, generating responsive HTML output is key for accessibility across various devices. The HTML <picture> element is an essential tool for this purpose, ensuring images in your documentation adapt seamlessly to different screen sizes and resolutions.

Simplified Approach

The <picture> element allows you to define multiple image sources for different viewing conditions. This flexibility is vital for technical documentation, where clarity and readability are paramount.

Usage in Flare

In your Flare project:

<picture>
<source media="(min-width: 800px)" srcset="large-image.jpg"/>
<img src="default-image.jpg" alt="Description"/>
</picture>

This code serves large-image.jpg for screens wider than 800px, with default-image.jpg as a fallback for smaller screens or unsupported browsers.

Benefits

  1. Responsive Design: Tailor images to fit various devices, enhancing user engagement.
  2. Efficiency: Reduce the need for multiple image versions in your Flare project.
  3. Clarity: Ensure images are crisp and clear, regardless of device or screen size.

Incorporating the <picture> element into your MadCap Flare HTML output is a straightforward yet impactful way to elevate your technical documentation. It's an easy step towards creating more responsive, device-friendly content.

· One min read
Mattias Sander

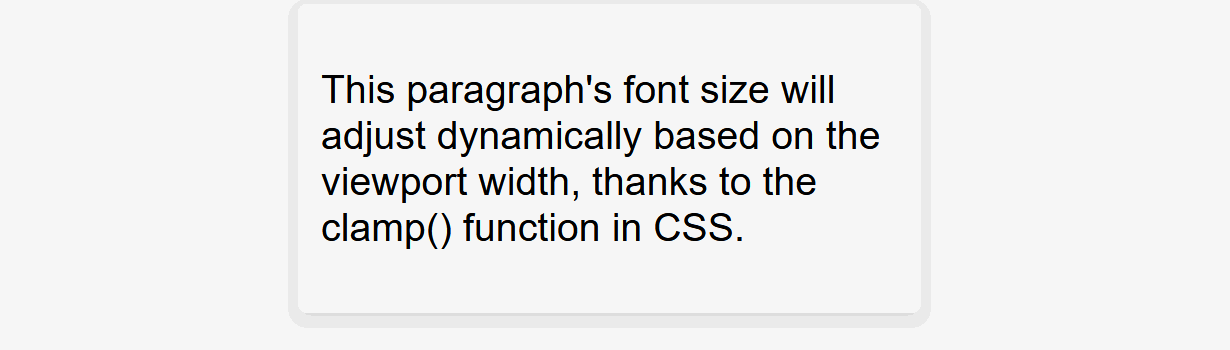

Clamp demo

What is CSS clamp()?

CSS clamp() is a function for responsive font sizing in web design, adjusting font size within specified minimum, preferred, and maximum sizes based on viewport size.

Using clamp() in MadCap Flare

To use clamp() in MadCap Flare for web outputs, update your CSS with a rule like .dynamic-font { font-size: clamp(1rem, 2vw, 3rem); } and apply this class to elements in Flare.

note

clamp() is not applicable to PDFs generated in Flare; adjust font settings for PDFs separately.

Additional Resources
